MPN

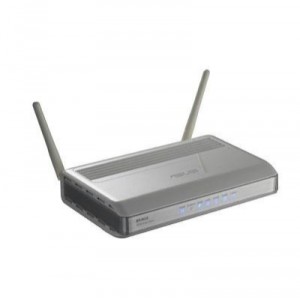

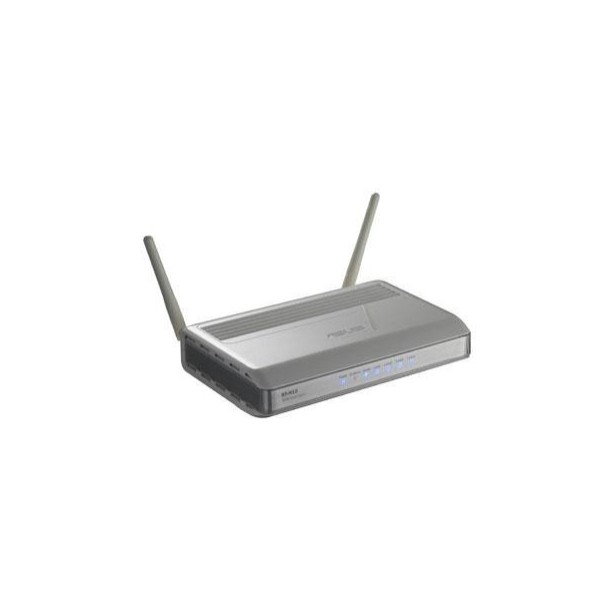

MPN: RT-N12

Key Features

Features: Sets the main function of wireless routeur.Répéteur
Connectivity: Wireless
Antenna type: Internal antennas are built into the device. They can not be changed or directed.
External antennas can be oriented in different directions. They are usually used to increase the range of the device.
The detachable antennas are screwed to the device. They can easily be replaced by models puissants.2 detachable antennas
WLAN Standards: IEEE 802.11b
IEEE 802.11n
IEEE 802.11d
IEEE 802.11i
IEEE 802.11g
IEEE 802.11e
Security: All access points are wireless to guarantee a certain level of security to protect access to data you transmit. These are safety standards that the device is conforme.WEP
WPA
TKIP
AES
WPA2
WEP 64-bit
128-bit WEP
WPA - PSK
WPA2-PSK

Interfaces

Integrated: Integrated Switch
Interfaces LAN: 10/100M
WAN interfaces: When you buy a router for a long-distance network, remember that this type of network covers a large number of different devices and services. You must therefore choose the interface based on the type of service and the nature anda quantity of traffic that the network will transmettre.1 x 10/100M
Additional Interfaces: 1 x RJ-45 Auxiliary Management

Standards and Protocols

LAN standards: IEEE 802.3u 100 Mbps (Fast Ethernet)
Protocols: The protocols are standard formats for converting data between devices. They determine many aspects of data: error checking, compression types and names of the procedures for sending and retrieving data from the devices. Programmers can choose from a wide variety of standard protocols, each with their advantages and disadvantages. Some are easier than others, some are more reliable and more faster. The key for the user that the device uses the correct protocol to communicate with other ordinateurs.DHCP

Firewall / VPN

Firewall Features: SPI (Stateful Packet Inspection)
NAT
VPN Encryption: The standard DES (Data Encryption Standard) is the standard method of data encryption. She uses the key DES56 bits to encrypt and decrypt data.
3DES 168-bit encryption (sometimes called "Triple") is an algorithm that guarantees a higher level of security because it encrypts each data block three times with each time a key unique.AES
WPA
WPA-PSK
WPA2

Wireless

802.11b data rates: 11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps
802.11g data rates: 54 Mbps, 48 ​​Mbps, 36 Mbps, 24 Mbps, 28 Mbps, 12 Mbps, 9 Mbps, 6 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps
Modulation: There are many standards of modulation. The most commonly used are:

DSSS
The standard DSSS (Direct-Sequence Spread Spectrum) is a transmission technology that combines the data signal to a sequence of data bits higher technique called "chipping." This ensures an increased resistance to noise and better data integrity.

OFDM
The standard OFDM (Orthogonal Frequency Division Multiplexing) is to transmit digital data by radio wave by dividing a radio signal into multiple sub-signals. These signals are then transmitted simultaneously at different frequencies. This modulation technique has the advantage of reducing the crosstalk noise.

CCK
CCK (Complementary Code Keying) uses a sequence of 64 code words 8 bits to encode data. This results in speeds of 5.5 and 11 Mb / s in the 2.4 GHz band of laOFDM
CCK
QPSK
BPSK
DBPSK
DQPSK
16QAM
64QAM
DSSS
WEP Encryption Length: WEP data encryption, as defined by the 802.11 standard, is used to build a network of two main security features: the first is toprevent unauthorized persons can access the network using a similar wireless LAN equipment. The second is to prevent unauthorized traffic on the LAN. WEP works on the following principle: the administrator can define "key" for each user of the wireless network and access is denied to all persons who have no clé.40 bits (= 64 bits)
128 bit

Other Features

LEDs: WAN
LAN (10/100)
AIR

Dimension

Width: 17.9 cm
Depth: 11.9 cm
Height: 3.7 cm
Weight: 0.3 kg

Various

UPC: 610839059447
Product No.: 91244553
